Hastelloy Flanges Manufacturer in India
Hastelloy WNRF Flanges Supplier, Hastelloy RTJ Flange Exporter, Hastelloy PN16 Slip On Flange Dealer, Hastelloy Flanges Manufacturer in India

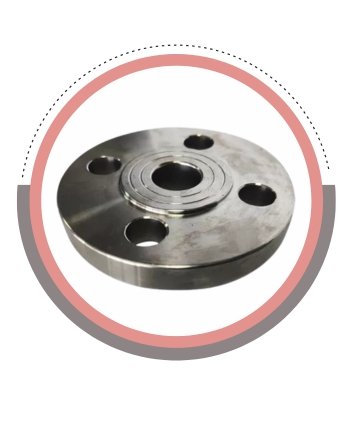

Sri Keshariya Metal is a reputed Hastelloy Flanges manufacturer in India. We manufacture Hastelloy Pipe Flanges whose performance is outstanding under aggressive chemical and petrochemical plant conditions. We supply our Hastelloy Long Weld Neck Flanges for high-pressure pipelines that require strength and structural support. Our Hastelloy Ring Type Joint Flanges provide leak-free, safe sealing where it is most important in heat exchangers and offshore drilling units.
Other Types of Hastelloy Flanges
-
Hastelloy Threaded Pipe Flange
-
Hastelloy NPT Threaded Flange
-
Hastelloy Alloy Slip-On Flange
-
ASME B16.5 Hastelloy SW Flange
-
Hastelloy Alloy LWN Flange
-
ANSI B16.5 Hastelloy C276 Flanges
-
Hastelloy Blind Plate Flanges
-
Hastelloy C22 Flanges
Sri Keshariya Metal

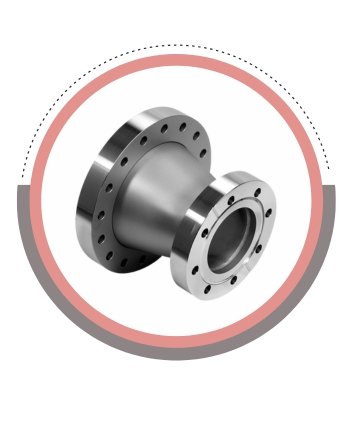

Hastelloy C276 Slip On Flange Dealer, Hastelloy C276 Blind Flange Exporter, C276 Hastelloy Reducing Flange Supplier in India

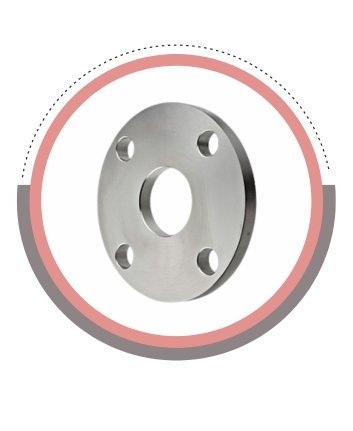

Sri Keshariya Metal is a reputed Hastelloy Flanges manufacturer in India. We supply Hastelloy Plate Flanges, which are broadly utilized in low-pressure applications to ensure easy alignment. Our Hastelloy Socket Weld Flanges are ideal where high pressure is a great concern in piping with small diameters. We also provide Hastelloy Lap Joint Flanges, which are a perfect solution in systems that demand to be dismantled/adjusted regularly. We are also a leading Hastelloy Pipe Fittings Manufacturer in India.
Specifications of Hastelloy Flanges
| Standards | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Flange Face Types | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Types of Hastelloy Flanges
Contact us Now!!
Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!
Hastelloy Flanges Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
Hastelloy Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
Applications of Hastelloy Flanges
Oil & Gas Industry
Oil & Gas Industry
Pharmaceutical Industry
Pharmaceutical Industry
Petrochemical Industries
Petrochemical Industries
Marine & Shipbuilding
Marine & Shipbuilding
Automotive Industries
Automotive Industries
The Standards We Follow while manufacturing our Hastelloy Flanges:
Packaging of Hastelloy Flanges
-
Gunny Bags / Woven Sacks
-
Cartons Boxes
-
Wooden Boxes
-
Plastic-Wrapped Packaging
-
Custom Packaging
-
Box Packaging
