Hastelloy Pipe Fittings Manufacturer in India

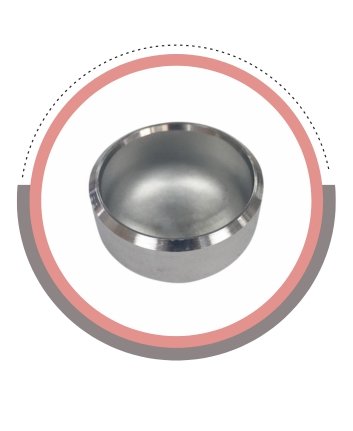

Hastelloy Alloy Equal Tee Exporter, Hastelloy Pipe End Cap Supplier, Hastelloy Pipe Elbow Manufacturer in India
Sri Keshariya Metal is an established Hastelloy Pipe Fittings manufacturer in India. Our Hastelloy Pipe Tee delivers consistent flow distribution to the fluid and is constructed with the capability to work in highly corrosive media. Our Hastelloy Pipe Cap is intended to safely end cap pipes and guard systems via the process of shutting down or storage. The Hastelloy Pipe Elbow can easily be rotated to change directions and provide the strength even at high temperatures and pressures.
Other Types of Hastelloy Pipe Fittings
-

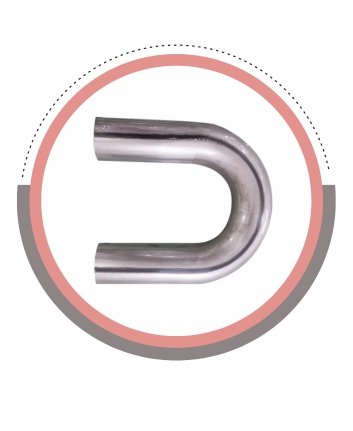

Hastelloy 2.4819 Pipe Bend
-
Hastelloy Pipe Fittings
-
Hastelloy Industrial Pipe Fittings
-
ANSI B16.9 Hastelloy Pipe Fittings
-

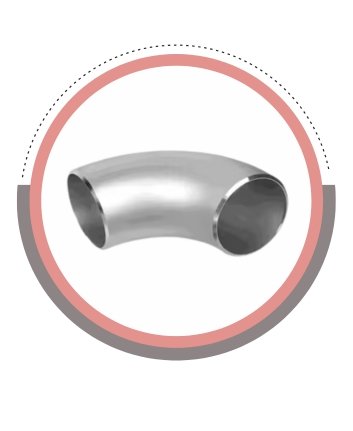

Hastelloy Alloy Pipe Elbow
-
Hastelloy Barred Tee
-

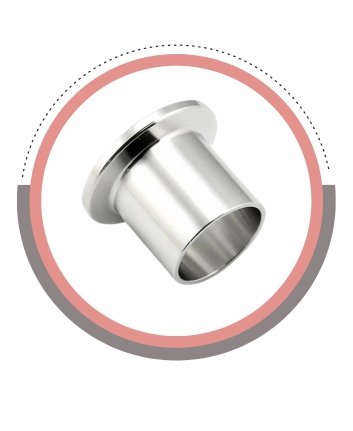

Hastelloy Alloy Stub End
-

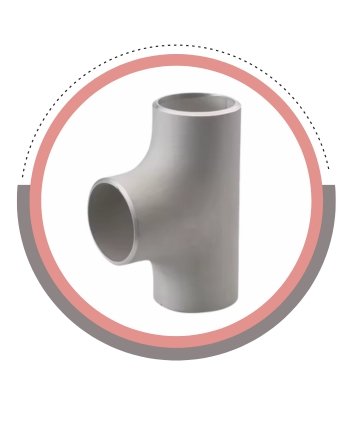

ANSI B16.9 Hastelloy Tees
Sri Keshariya Metal

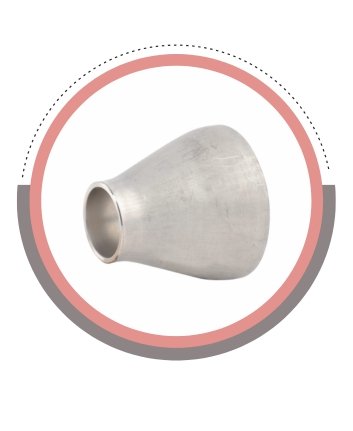

Hastelloy Concentric Reducer, Hastelloy Pipe Bends Supplier, ASME SB366 Hastelloy Pipe Cross Dealer, Hastelloy Pipe Fittings Supplier in India
Sri Keshariya Metal is the best quality Hastelloy Pipe Fittings Supplier in India. The Hastelloy Equal Crosses we use are suited to apportioned flow within complex centralization of piping. At Hastelloy Alloy Pipe Cross, we are characterized by high resistance to oxidizing and reducing agents in the process industry. The Alloy Couplings are Hastelloy, and leak-free connections are achieved, and hence ideal for the transfer of corrosive fluids. We are also a leading Hastelloy Flanges Manufacturer in India.
Specifications of Hastelloy Pipe Fittings
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Size | 1/2"NB TO 12"NB IN |
| Thickness | Sch Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS |
| Types | Seamless / ERW / Welded / Fabricated |
| Grades | Hastelloy C22 (UNS No. N06022), Hastelloy B2 (UNS No. N10665), Hastelloy C-4 (UNS No. N06455) |
Types of Hastelloy Pipe Fittings
Contact us Now!!
Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!
Hastelloy Pipe Fittings Chemical Properties
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
Hastelloy Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
Applications of Hastelloy Pipe Fittings
Oil & Gas Industry
Oil & Gas Industry
Pharmaceutical Industry
Pharmaceutical Industry
Petrochemical Industries
Petrochemical Industries
Marine & Shipbuilding
Marine & Shipbuilding
Automotive Industries
Automotive Industries
The Standards We Follow while manufacturing our Hastelloy Pipe Fittings:
Packaging of Hastelloy Pipe Fittings
-
Gunny Bags / Woven Sacks
-
Cartons Boxes
-
Wooden Boxes
-
Plastic-Wrapped Packaging
-
Custom Packaging
-
Box Packaging
