Inconel Flanges Manufacturer in India
718 Inconel Pipe Flanges Dealer, ASTM B564 Inconel Square Flanges, Inconel UNS N06601 Flange Manufacturer in India

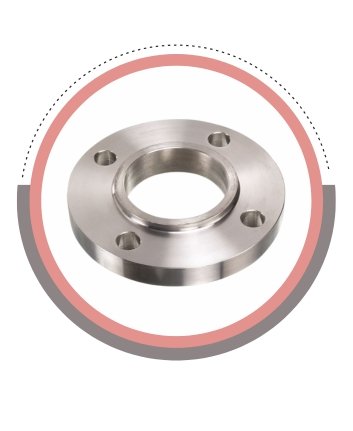

Sri Keshariya Metal is one of the leading Inconel Flanges manufacturers in India. Our Inconel Blind Plate Flanges are best suited for closing and ending of pipelines and have a leakproof feature with high-pressure performance. Incoloy Slip-on Flanges that we supply are to be installed easily, aligned with the least effort in low-pressure applications. The Inconel Reducing Flanges could facilitate smooth connections between the sizes of pipes, and in addition, they could also preserve the integrity of systems in complicated flow systems.
Other Types of Inconel Flanges
-

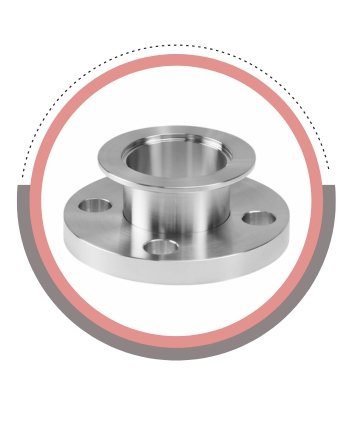

Inconel 600 Lap Joint Flanges
-
Inconel 2.4816 Flanges
-

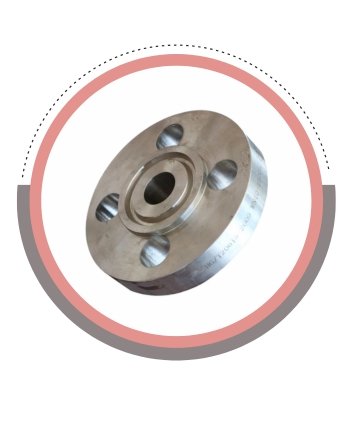

Inconel 600 RTJ Flanges
-
Inconel 600 Raised Face Flanges
-
Inconel 600 Flat Face Flange
-
Inconel 600 Nipo Flange
-
Inconel Pipe Flanges
-
ANSI B16.5 Inconel Flanges
Sri Keshariya Metal

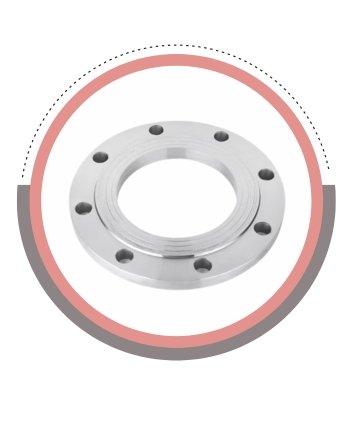

ASTM B564 Inconel Ring Type Joint Flanges Dealer, UNS N06625 Inconel Plate Flange Supplier, 601 Alloy Lapped Joint Flanges Supplier in India
Sri Keshariya Metal is one of the finest Inconel Flanges Suppliers in India. Our Inconel Socket Weld Flanges provide strong, leak-free joints, especially when high pressure is required but the diameter is small. Incoloy Tongue Flanges we supply are used to seal up precisely with the heat exchangers and valve assemblies. Inconel Weld Neck Flanges have good stress distribution, such that it is effective and can be used in high-temperature conditions as well as in high-pressure conditions. We are also a leading Inconel Pipe Fittings Manufacturer in India.
Specifications of Inconel Flanges
| Standard | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Types of Inconel Flanges
Contact us Now!!
Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!
Inconel Flanges Chemcial Properties
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Inconel Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Applications of Inconel Flanges
Oil & Gas Industry
Oil & Gas Industry
Pharmaceutical Industry
Pharmaceutical Industry
Petrochemical Industries
Petrochemical Industries
Marine & Shipbuilding
Marine & Shipbuilding
Automotive Industries
Automotive Industries
The Standards We Follow while manufacturing our Inconel Flanges:
Packaging of Inconel Flanges
-
Gunny Bags / Woven Sacks
-
Cartons Boxes
-
Wooden Boxes
-
Plastic-Wrapped Packaging
-
Custom Packaging
-
Box Packaging
