Inconel Pipe Fittings Manufacturer in India

ASME SA B366 Alloy 600 Pipe Cap Supplier, Inconel 600 Industrial Pipe Fittings, Inconel 600 Eccentric Reducer Manufacturer in India

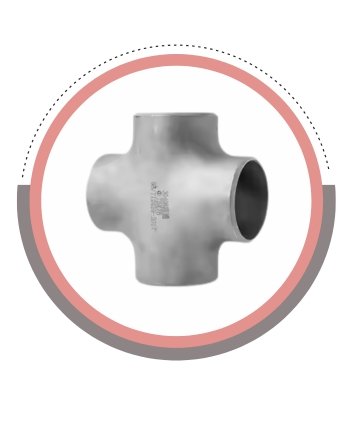

Sri Keshariya Metal is an emerging Inconel Pipe Fittings manufacturer in India. Our Inconel 600 Stub End is used to provide a safe connection to the flanges with optimal oxidation as well as scale resistance. Inconel 600 Cross is a piping material that we provide, where the supports are designed so that it can retain its structural integrity when used in a complex piping system. Inconel 600 Pipe Bend is designed to be precision-shaped so that the directional flow may be easy, but it does not affect pressure or strength.

Other Types of Inconel Pipe Fittings

Inconel Long Stub End
Inconel Equal Tee
Inconel Concentric Reducer
Inconel 90 Deg. Elbow

Inconel 600 Straight Cross
ASME SB366 600 Inconel U Bends
ASME B16.28 Alloy 600 Equal Tee
ANSI B16.9 600 Inconel Pipe Nipple

Inconel Steel Pipe Fittings manufacturer

Sri Keshariya Metal

Inconel 600 Pipe End Cap Supplier, Inconel 601 Elbow, ASME SB366 Inconel 600 Long Stub Dealer, Inconel 600 Pipe Elbow Supplier in India

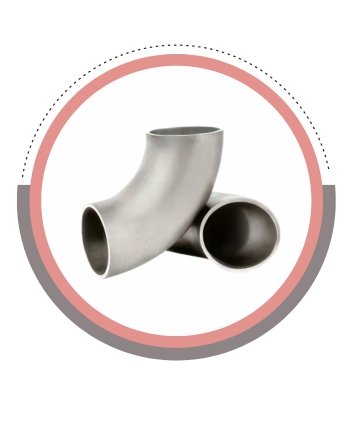

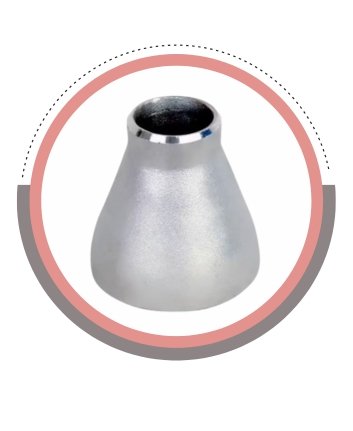

Sri Keshariya Metal is a major Inconel Pipe Fittings supplier in India. Our Inconel 600 Concentric Reducer offers smooth diameter transitions while withstanding high thermal stress. We supply Inconel 625 Reducer, known for its excellent fatigue strength and resistance to aggressive chemicals. The Inconel 625 Pipe Elbow is designed for directional flow control in high-pressure piping systems, ensuring durability and leak-free performance. We are also a leading Inconel Flanges Manufacturer in India.

Specifications of Inconel Pipe Fittings

Standard	ASTM B366 / ASME SB366
Dimensions	ANSI B16.9, B16.25, B16.28, MSS-SP-43, MSS-SP-48, MSS-SP-59
Size	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type	Seamless / Welded(100% X-Ray Welded) / Fabricated
Thickness	Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Types of Inconel Pipe Fittings

Contact us Now!!

Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!

Whatsapp US Contact Us Mail US

Inconel Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 600	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00
Inconel 601	0.10 max	1.0 max	0.5 max	0.015 max	1.0 max	Balance	58.0 – 63.0	21.0 – 25.0
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	-	5.0 max	58.0 min	20.0 - 23.0
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	-	50.00 - 55.00	17.00 - 21.00

Inconel Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 600	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %
Inconel 718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 482	45 %
