Monel Flanges Manufacturer in India

ASTM B564 Grade 400 Orifice Flange Dealer, Monel Socket Weld Flanges Supplier, ASTM B564 Alloy 400 Threaded Flange Manufacturer in India

Sri Keshariya Metal is a remarkable Monel Flanges manufacturer in India. We supply Monel 400 Plate Flanges that have extensive application in low-pressure and non-critical applications that ensuring easy installation and alignment. Our Monel 400 Weld Neck Flanges suit high-pressure piping systems because they are stronger and highly weldable. The Monel 400 Threaded Flanges that we supply are ideal for use on small-sized pipelines, particularly at locations where the weld is impractical.

Other Types of Monel Flanges

Monel Welding Neck Flanges
Monel Tongue Flanges
Monel Spectacle Blind Flanges
Monel Lapped Joint Flanges

ASTM B564 Monel Forged Flanges
Monel 400 DIN Flanges
Monel K500 SORF Flanges
Monel UNS N04400 Flanges

Sri Keshariya Metal

Monel Socket weld Flanges Supplier, ASTM B564 Monel 400 Lap Joint Flanges Dealer, ANSI B16.5 Slip On Flanges Supplier in India

Sri Keshariya Metal is a notable Monel Flanges supplier in India. With our Monel Ring Type Joint Flange, we can supply a reliable, leak-free seal where there is high pressure. We manufacture Monel Orifice Flanges that are usually installed in flow measurement systems to give an accurate control of fluid. Our Monel 400 Slip-On Flanges are simple to install and suited to low-pressure, less critical connections of piping. We are also a leading Monel Pipe Fittings Manufacturer in India.

Specifications of Monel Flanges

Standards	ASTM B564 / ASME SB564
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Flange Face Types	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Types of Monel Flanges

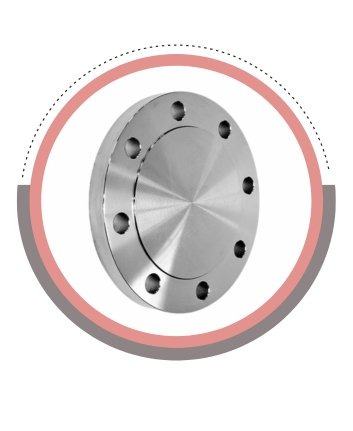

Monel Blind Flanges

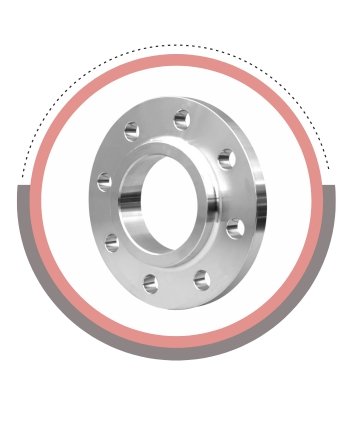

Monel 400 Slip On Flange

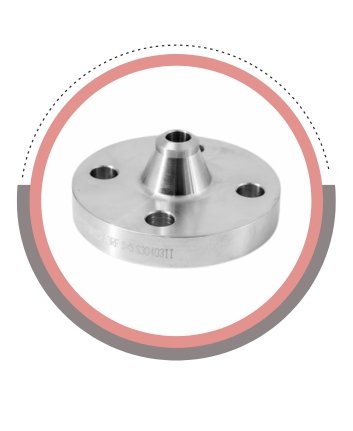

Monel Reducing Flanges

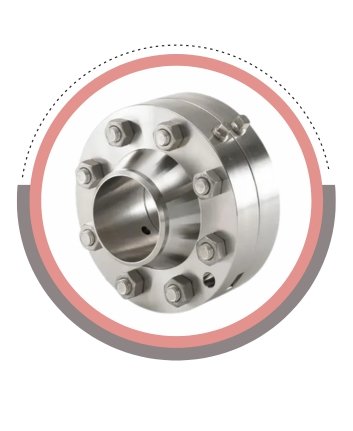

Monel 400 Orifice Flanges

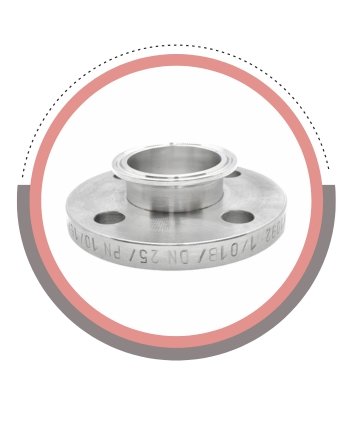

Monel Lap Joint Flanges

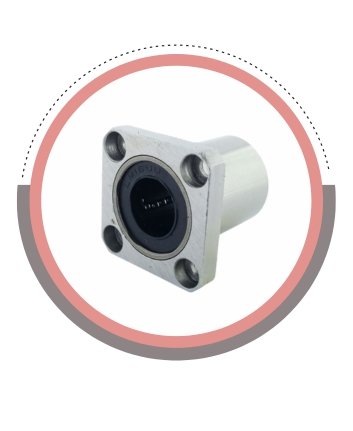

Monel 400 Square Flanges

Contact us Now!!

Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!

Whatsapp US Contact Us Mail US

Monel Flanges Chemical Compositions

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

Monel Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %
Monel K500	8.44 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %
