Monel Pipe Fittings Manufacturer in India

Monel 400 Pipe Tee Dealer, Monel 400 Seamless Cross Exporter, ASME SB 366 400 Monel Pipe Fittings Manufacturer in India

Sri Keshariya Metal is a noteworthy Monel Pipe Fittings manufacturer in India. Our Monel 400 Pipe Elbow is known for its excellent resistance to acidic and alkaline environments. The ASME SB366 Monel Elbows we supply are manufactured with precise dimensional accuracy and high tensile strength. We also supply Monel Equal Tees, which are valued for their seamless construction and long service life in demanding conditions.

Other Types of Monel Pipe Fittings

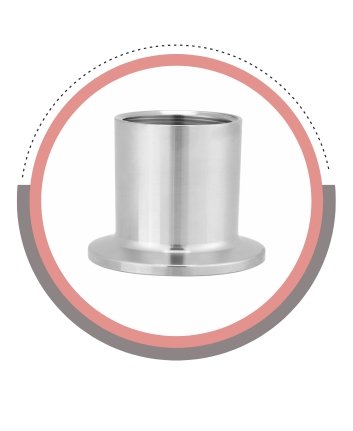

400 Monel Lap Joint Stub Ends
Monel 400 Equal Tee
Monel 400 Seamless Tee

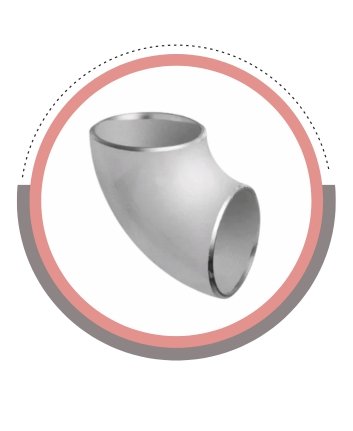

UNS N04400 Butt weld Elbows

Monel 400 U Shape Bends
Monel 400 Seamless Reducer

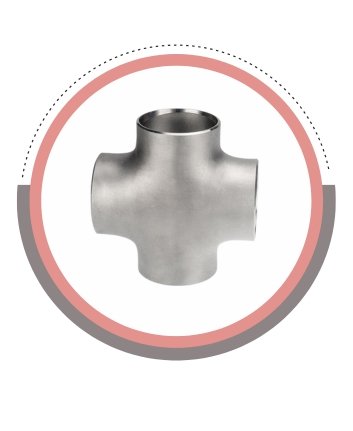

Monel 400 Welded Cross
Alloy 400 Short Stub End

Sri Keshariya Metal

Monel Pipe End Cap Dealer, Monel 90 Degree Elbow Supplier, Monel Short Stub End Exporter, Monel 400 Welded Pipe Fittings Supplier in India

Sri Keshariya Metal is a remarkable Monel Pipe Fittings supplier in India. Our Monel Concentric Reducer will provide a smooth flow transition between various sizes of pipes and will be pressure-tight. Monel K500 Half Couplings we supply are valued as superior in both strength and fatigue resistance. We are also stocking Monel 400 Pipe Cap, which is used to seal the pipe ends safely and to safeguard the environmental effects on systems. We are also a leading Monel Flanges Manufacturer in India.

Specifications of Monel Pipe Fittings

Specifications	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size	Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type	Seamless / Welded / Fabricated
Schedule	Sch 5 TO Sch XXS
Thickness	20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Grades	Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)

Types of Monel Pipe Fittings

Contact us Now!!

Get in touch with Sri Keshariya Metal today for high-quality pipe fittings and flanges tailored to your industrial needs!

Whatsapp US Contact Us Mail US

Monel Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

Monel Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %
Monel K500	8.44 g/cm3	1350 °C (2460 °F)	Psi – 160000 , MPa – 1100	Psi – 115000 , MPa – 790	20 %
